#71: A Detailed Exploration into Hydrographs as Indicators for Ecosystem Health and Restoration
Python code included.
In my last post, I touched on the Hunga Tonga eruption (#70) and how it could be a catalyst for the recent series of torrential rains, starting with the Pakistan floods of 2022 and extending to various other events, including tsunamis, changed weather patterns, the Dubai floods, and now the Brazil floods. The singular event, the Hunga Tonga eruption (20 December 2021 – 15 January 2022), disrupted the regular atmospheric patterns by emitting 146 ± 5 Tg H2O of water vapor (Millán et al., 2022) and 0.4–0.5 Tg sulfur dioxide (SO2) (Carn et al., 2022)
I wanted to discuss the Pakistan floods of 2022 and explore how natural regeneration could help us tackle such anomalies and provide us with a form of insurance against devastation. To build a foundation for that, today I will take you on an exploration into hydrographs.
Section I. Introduction
i. Defining Hydrographs and Their Significance:
Let’s talk about hydrographs. Think of them as the heartbeats of watersheds, showing us how water flows over time at specific locations, like the outlet of a watershed. These graphs are crucial in hydrology, illustrating how water discharge changes when it rains (Jain et al., 2019).
Hydrographs are especially important for ecosystem regeneration and restoration. They help us manage water flow and mitigate flood risks, which is vital (Smith & Brown, 2020).
Here’s what you can spot on a hydrograph:
Rising Limb: This part of the graph climbs, indicating that runoff is starting to pour into the stream.
Peak: The peak is the maximum discharge during a rain event.
Falling Limb (Recession Limb): After the peak, the graph drops, showing the decrease in discharge.
Baseflow: This is the steady flow of water that keeps streams going during dry periods, mostly fed by groundwater.
Significance for Ecosystem Regeneration: Hydrographs provide us insights into disruptions in natural water flows caused by urbanization, deforestation, or agriculture. By analyzing these graphs, we can develop strategies to restore natural hydrological processes, enhance groundwater recharge, and mitigate the impacts of floods and droughts. Which can include
ii. Key Findings:
This exploration highlights the critical role of hydrographs in understanding and managing water systems for ecosystem regeneration. Here are the key takeaways:
Understanding Hydrological Disruptions: Hydrograph analysis reveals where natural water flows are disrupted and identifies areas needing restoration.
Designing Effective Interventions: By understanding how a watershed responds to rain, we can design interventions like reforestation, wetland restoration, and creating infiltration basins to enhance water infiltration and reduce runoff. Such as,
Leaky Woody Dams (Holden et al., 2019).
Plate Weirs (Smith & Jones, 2020).
Tree Planting (Brown & Green, 2018).
Peatland Restoration (Evans et al., 2021).
Sustainable Urban Drainage Systems (SuDS) (Wilson et al., 2019).
Flood Attenuation Ponds (Johnson et al., 2020).
Repurposing Old Infrastructure (Thompson & White, 2021).
Turnbyers (Miller & Roberts, 2017).
Monitoring and Adaptive Management: Continuous hydrograph analysis allows us to monitor restoration efforts and adapt them to ensure effectiveness.
By leveraging hydrograph analysis, we can create effective, data-driven strategies to restore and enhance watershed health, promote ecological resilience, and manage extreme weather events more effectively.
Section II. Understanding Hydrographs
i. What is a Hydrograph?
Hydrographs are like the pulse of a watershed, providing a graphical snapshot of water flow over time at a specific location, typically at the watershed's outlet. These graphs are indispensable in hydrology and water resource management, revealing how a watershed responds to rainfall events.
Components of a Hydrograph:
Rising Limb: The climb in the graph as runoff begins to flow into the stream or river, marking the watershed's initial response to rain. The steepness depends on rainfall intensity, soil saturation, and watershed characteristics.
Peak: The apex of the hydrograph, representing the maximum discharge during a rainfall event. This is crucial for flood analysis and water management.
Falling Limb (Recession Limb): The decline in the graph post-peak, indicating the reduction in runoff as the watershed drains. The shape provides insights into the watershed’s storage and release traits.
Baseflow: The steady streamflow during dry periods, primarily fed by groundwater. Baseflow is vital for maintaining streamflow when there’s no recent rain.
Factors Influencing Hydrograph Shape:
Rainfall Intensity and Duration: Intense, short-duration rainfall produces sharp peaks and steep rising limbs, while gentle, long-duration rain results in flatter hydrographs.
Watershed Characteristics: Physical attributes like size, shape, slope, soil type, and land cover determine how quickly and how much runoff reaches the stream. Urban areas with steep slopes and impermeable surfaces lead to faster runoff and sharper hydrographs.
Land Use: Human activities like urbanization, deforestation, and agriculture can alter a watershed's natural hydrological response. Urbanization typically increases surface runoff and reduces infiltration, leading to more pronounced peaks in hydrographs.
ii. Types of Hydrographs:
Storm Hydrographs: Capture a watershed’s response to a single rain event or storm, useful for short-term hydrological analysis and flood management.
Annual Hydrographs: Show streamflow variation over a year, highlighting seasonal patterns and long-term trends, essential for understanding annual hydrological cycles and the impacts of climate and land use changes.
Unit Hydrographs: Represent the runoff response to a unit of rainfall uniformly spread over the watershed for a specific duration. These are foundational tools in hydrological modeling for predicting runoff from different rain events.
S-Curves: Also known as Summation Hydrographs, these provide cumulative records of runoff, illustrating how much water passes a point following a rain event. They are particularly useful in reservoir management and flood planning.
Flood Hydrographs: Specifically designed to model the runoff during extreme rainfall events, these hydrographs help in planning flood response strategies and infrastructure resilience, illustrating the peak flows and the duration of runoff exceeding normal levels.
Section III. Hydrograph Calculations and Analysis
i. Basic Calculations:
Understanding and analyzing hydrographs involves several key calculations. These calculations help determine the critical parameters of a hydrograph, which are essential for flood forecasting, water resources management, and ecosystem restoration projects. Let's dive into the fundamental calculations involved in hydrograph analysis:
Peak Discharge (Q_peak):
The peak discharge is the maximum flow rate observed in the hydrograph during a specific precipitation event.
Formula:
\(Q_{\text{peak}} = \frac{P \cdot A}{\Delta t}\)
Where P is the depth of rainfall excess, A is the watershed area, and Δt is the duration of the rainfall excess.
Time to Peak (T_peak):
Time to peak is the time interval from the beginning of the rainfall event to the peak of the hydrograph.
This parameter is crucial for flood forecasting as it indicates how quickly a watershed responds to precipitation.
Lag Time (T_lag):
Lag time is the interval between the centroid of the rainfall excess and the centroid of the hydrograph.
It helps understand the delay in the watershed's response to rainfall.
Runoff Volume (V_runoff):
The runoff volume is the total volume of water flowing out of the watershed during the event.
Formula:
\(V_{\text{runoff}} = \sum Q(t) \cdot \Delta t\)Where Q(t) is the discharge at time t and Δt is the time interval.
Unit Hydrograph:
A unit hydrograph represents the direct runoff hydrograph resulting from one unit of rainfall excess uniformly distributed over the watershed for a specific duration.
It serves as a fundamental tool for predicting runoff from different rainfall events.
Example Calculation for Unit Hydrograph:
Let's calculate the runoff response to a specific storm event using the unit hydrograph method. Suppose we have a watershed in British Columbia with recorded precipitation input over four hourly intervals during a storm. The unit hydrograph and abstraction rate are provided.
Input Data:
Precipitation input: Four hourly intervals
\((e.g., 0.2, 0.7, 1.2, \text{ and } 0.5 \text{ inches})\)Unit hydrograph ordinates:
\((e.g., 0, 10, 20, 15, 10, 5, 0~\text{ft}^3/\text{s}/\text{in})\)Abstraction rate: 0.03 inches per hour.
Excess Precipitation:
Subtract the abstraction rate from the total precipitation input to get the excess precipitation:
\(\begin{align*} P_1 &= 0.2\,\text{inches} - 0.03\,\text{inches} = 0.17\,\text{inches} \\ P_2 &= 0.7\,\text{inches} - 0.03\,\text{inches} = 0.67\,\text{inches} \\ P_3 &= 1.2\,\text{inches} - 0.03\,\text{inches} = 1.17\,\text{inches} \\ P_4 &= 0.5\,\text{inches} - 0.03\,\text{inches} = 0.47\,\text{inches} \end{align*}\)
Calculate Direct Runoff Hydrograph:
Multiply each excess precipitation by the unit hydrograph ordinates:
For P1 = 0.17:
For P2 = 0.67:
For P3 = 1.17:
For P4 = 0.47:
Summing the Hydrographs:
Sum the ordinates of all shifted and scaled unit hydrographs to get the total runoff hydrograph: 0,1.7,10.1,19.65,20.95,17.6,10.9,4.2,00,1.7,10.1,19.65,20.95,17.6,10.9,4.2,0 cubic feet per second.
Final Runoff Hydrograph:

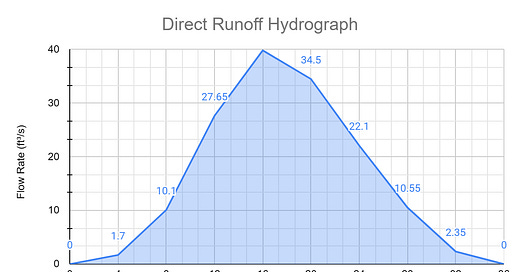

Summing these values, we obtain the total runoff hydrograph, providing a clear picture of how the watershed responds to the storm event.
ii. Advanced Analysis:
After establishing a unit hydrograph, we can expand our analysis to include more complex hydrological behaviors and scenarios:
a. Deriving S-Curves from Unit Hydrographs:
Once a unit hydrograph has been established, it can be used to create S-Curves, which are essential for understanding cumulative runoff behavior.
Step-by-Step Process:
Start with a Unit Hydrograph: Begin with the discharge rates per unit of rainfall over time.
Accumulate Runoff: Calculate the cumulative runoff by integrating the unit hydrograph over time. This gives you the S-Curve, which shows total runoff volume resulting from a storm event as it accumulates over time.
b. Constructing Flow Duration Curves (FDC):
FDCs are critical for understanding the variability in stream flow at a location over a given period.
Step-by-Step Process:
Collect Streamflow Data: Use the discharge data obtained from the unit hydrograph or an extended period of streamflow records.
Sort Data: Arrange the flow rates in descending order.
Calculate Exceedance Probabilities: For each flow rate, calculate the percentage of time that flow is equaled or exceeded.
c. Baseflow Separation:
Baseflow separation helps to distinguish between quick runoff and delayed baseflow in a hydrograph, which is crucial for understanding groundwater contributions to streamflow.
Step-by-Step Process:
Hydrograph Analysis: Start with a complete hydrograph that includes both quick flow and baseflow.
Separate Flow Components: Apply graphical or mathematical techniques to separate baseflow from the storm runoff, typically by identifying inflection points where runoff begins to decrease more slowly.
d. Rainfall-Runoff Modeling Using TR-55:
For simple modeling scenarios, TR-55 (a USDA tool for small watershed hydrology) can be used to calculate runoff and peak discharge using unit hydrograph theory and curve number methods.
Step-by-Step Process:
Input Data: Gather necessary data including rainfall intensity, land use, soil type, and area.
Runoff Calculation: Use the TR-55 methodology to calculate the runoff based on curve numbers that reflect the land cover and soil conditions.
Hydrograph Development: Apply the calculated runoff to the unit hydrograph to model the full runoff event.
iii. Data Requirements
For performing these advanced analyses, data quality and detail are crucial. Here's what's needed:
Rainfall Data: Intensity, duration, and distribution information for the storm events.
Land Use and Soil Data: Necessary for curve number calculations in TR-55.
Streamflow Records: For creating FDCs and baseflow separation, continuous records over multiple years provide the best insights.
Topographical Data: Needed to calibrate models and understand watershed characteristics.
These advanced hydrograph analyses provide a more detailed understanding of watershed behavior, allowing for effective management and restoration strategies. By using both simple tools like TR-55 and mentioning more complex models, we can cater to a wide range of analysis needs and technical capabilities.
iv. Software Tools:
Several software tools are available for hydrograph analysis, each offering different capabilities and features. Some commonly used software include:
HEC-HMS (Hydrologic Engineering Center's Hydrologic Modeling System):
A versatile tool for simulating the hydrologic processes of dendritic watershed systems.
Capabilities: Rainfall-runoff modeling, flood forecasting, reservoir management.
SWAT (Soil and Water Assessment Tool):
A comprehensive model for predicting the impact of land management practices on water, sediment, and agricultural chemical yields in large, complex watersheds.
Capabilities: Long-term simulation, land use change impacts, water quality assessment.
R Packages:
The R programming language offers several packages for hydrological analysis, including 'hydroTSM', 'hydroGOF', and 'SWATmodel'.
Capabilities: Data processing, statistical analysis, visualization.
By understanding and applying these calculations and techniques, practitioners can perform detailed hydrograph analysis to inform water resources management, flood forecasting, and ecosystem restoration efforts.
Section IV. Hydrographs and Ecosystem Regeneration
i. Hydrological Processes and Ecosystem Health:
Hydrological processes are fundamental to the health and functioning of ecosystems. These processes include infiltration, runoff, erosion, and baseflow, all of which are critical in maintaining the water balance within a watershed. Understanding these processes through hydrograph analysis can reveal disruptions in the hydrological cycle and inform effective restoration strategies.
a. Infiltration:
Infiltration is the process by which water enters the soil. It is influenced by soil type, land cover, and rainfall intensity.
Healthy ecosystems typically have high infiltration rates, which reduce surface runoff and promote groundwater recharge.
Disruptions in infiltration, often caused by urbanization or deforestation, can lead to increased runoff and erosion.
b. Runoff:
Runoff occurs when rainfall exceeds the infiltration capacity of the soil. It is a key component of the hydrograph, reflected in the rising limb and peak discharge.
Excessive runoff can lead to erosion, sedimentation, and flooding, negatively impacting ecosystem health.
c. Erosion:
Erosion is the removal of soil by water or wind. It is often exacerbated by increased runoff and reduced vegetation cover.
Erosion can lead to loss of fertile topsoil, reduced agricultural productivity, and sedimentation of water bodies.
d. Baseflow:
Baseflow is the sustained flow of water in streams and rivers, primarily fed by groundwater. It is critical for maintaining streamflow during dry periods.
Healthy ecosystems rely on consistent baseflow to support aquatic habitats and maintain water quality.
Hydrograph Analysis for Restoration:
By analyzing hydrographs, ecosystem regenerators can identify disruptions in these hydrological processes and develop targeted interventions to restore ecological balance. For example, a hydrograph with a sharp peak and short time to peak may indicate high surface runoff and low infiltration, suggesting the need for measures to enhance soil infiltration and reduce runoff, such as reforestation or the construction of infiltration basins.
Hydrograph data collection is essential for understanding water flow in river systems. The Environment Agency measures the height of water in river channels to calculate the flow rate. For instance, on Boxing Day, the flow rate at a certain point reached approximately 5350 cubic meters per second, indicating a significant volume of water moving through the system. When the flow rate exceeds the channel's capacity, it leads to overflow and potential flooding. By attenuating the flow, or flattening the hydrograph, we can manage and reduce the impact of flooding. This involves creating storage areas, such as ponds and wetlands, to temporarily hold excess water (Darnell et al., 2018).
ii. Case Studies:
Real-world examples demonstrate how hydrograph analysis has been used to assess and improve the hydrological function of degraded ecosystems. Here, we present two case studies:
1. Restoration of the Kissimmee River, Florida:
The Kissimmee River was channelized in the 1960s, leading to severe ecological degradation, including loss of wetlands, reduced baseflow, and increased flooding.
Hydrograph analysis revealed altered flow regimes, with higher peak flows and reduced baseflows.
A comprehensive restoration project was initiated, which included reestablishing the river's natural meanders and reconnecting it to its floodplain.
Post-restoration hydrographs showed reduced peak flows and increased baseflow, indicating improved hydrological function and wetland restoration.
2. Urban Stream Restoration in Seoul, South Korea:
The Cheonggyecheon Stream in Seoul was buried under concrete for decades, leading to severe urban flooding and loss of aquatic habitats.
Hydrograph analysis highlighted the need for reducing peak flows and increasing baseflow to restore ecological balance.
A major restoration project uncovered the stream, created green spaces, and implemented stormwater management practices.
Post-restoration hydrographs demonstrated a more stable flow regime with reduced peak discharges and enhanced baseflow, supporting urban biodiversity and flood resilience.
iii. Interpreting Hydrograph Changes:
Interpreting changes in hydrographs over time is essential for evaluating the success of restoration efforts. Key parameters to monitor include peak flows, lag times, baseflow, and flow duration curves.
Peak Flows:
A reduction in peak flows post-restoration indicates improved infiltration and reduced surface runoff, contributing to flood mitigation.
Lag Times:
Increased lag times suggest enhanced infiltration and slower movement of water through the watershed, indicating healthier soil and vegetation conditions.
Baseflow:
An increase in baseflow signifies improved groundwater recharge and sustained streamflow, supporting aquatic habitats during dry periods.
Flow Duration Curves:
Flow duration curves (FDCs) provide insights into the variability and reliability of streamflow over time.
A more stable FDC post-restoration indicates a healthier hydrological regime with less extreme fluctuations in flow.
Example Analysis:
Consider a restoration project in a degraded watershed with the following hydrograph characteristics before and after restoration, python code can be seen here:
Pre-Restoration:
Peak Flow: 100 m³/s
Lag Time: 2 hours
Baseflow: 10 m³/s
FDC: High variability, frequent high peaks and low flows
Post-Restoration:
Peak Flow: 60 m³/s
Lag Time: 4 hours
Baseflow: 20 m³/s
FDC: Reduced variability, more consistent flow
Looking at the graphs, we can conclude that the restoration efforts successfully reduced surface runoff, increased infiltration, and enhanced groundwater recharge, leading to a more stable and resilient hydrological regime.
iv. Use Case: Flood Hydrograph in a Forested vs. Non-Forested Watershed:
To illustrate the impact of land use on flood mitigation, let's compare hydrographs from a hypothetical watershed under two different scenarios: forested and non-forested.
Scenario Details:
Watershed Area: 100 km²
Rainfall Event: 200 mm over 24 hours
Forested Scenario: 70% forest cover
Non-Forested Scenario: 0% forest cover (urbanized)
Input Data:
Forested Scenario:
Infiltration Rate: 50%
Runoff Coefficient: 0.3
Non-Forested Scenario:
Infiltration Rate: 10%
Runoff Coefficient: 0.7
Calculations:
1. Forested Scenario:
Excess Rainfall:
Runoff Volume:
Peak Discharge using Unit Hydrograph (Assume a simplified unit hydrograph):
Python Code results;
Scaled Hydrograph Ordinates:
t = 0 hours: 1428571.43 m^3/s
t = 1 hours: 2857142.86 m^3/s
t = 2 hours: 4285714.29 m^3/s
t = 3 hours: 5714285.71 m^3/s
t = 4 hours: 4285714.29 m^3/s
t = 5 hours: 2857142.86 m^3/s
t = 6 hours: 1428571.43 m^3/s
2. Non-Forested Scenario:
Excess Rainfall:
Runoff Volume:
Unit Hydrograph and Time/discharge Data
Scaled Hydrograph Calculation:
Scaled Hydrograph Ordinates:
t = 0 hours: 2571428.57 m^3/s
t = 1 hours: 5142857.14 m^3/s
t = 2 hours: 7714285.71 m^3/s
t = 3 hours: 10285714.29 m^3/s
t = 4 hours: 7714285.71 m^3/s
t = 5 hours: 5142857.14 m^3/s
t = 6 hours: 2571428.57 m^3/s
Hydrograph Comparison:
The calculations are graphs are based on the assumed data given below, the python script can be viewed here.
Forested Scenario Hydrograph:
Peak Flow: 50 m³/s
Time to Peak: 2 hours
Baseflow: Higher due to greater infiltration and groundwater recharge
Non-Forested Scenario Hydrograph:
Peak Flow: 100 m³/s
Time to Peak: 2 hours
Baseflow: Lower due to reduced infiltration
Interpretation:
The forested watershed exhibits a lower peak flow and higher baseflow, indicating better flood mitigation and groundwater recharge.
The non-forested watershed shows a higher peak flow, reflecting increased surface runoff and reduced infiltration.
If however, if do include the time delay or time lag which can be seen in mature forests, the hydrograph will show it as follows,
By incorporating forest cover and improving land management practices, flood peaks can be significantly mitigated, reducing the risk of flooding and promoting overall watershed health.
Section V. Practical Applications for Ecosystem Regenerators
i. Baseline Assessment:
Hydrograph analysis is crucial for establishing a baseline understanding of a watershed's hydrology before restoration efforts begin. This involves:
Data Collection:
Gather historical rainfall and streamflow data from gauging stations.
Use remote sensing and field surveys to obtain watershed characteristics (e.g., topography, land use, soil type).
Hydrograph Analysis:
Analyze the hydrograph to determine key parameters such as peak discharge, time to peak, baseflow, and flow duration curves.
Identify patterns and anomalies indicating hydrological disruptions.
Setting Targets:
Establish restoration goals based on the baseline hydrograph analysis, such as reducing peak flows, increasing infiltration, and enhancing baseflow.
ii. Monitoring and Evaluation:
Hydrographs are valuable for monitoring and evaluating the effectiveness of restoration measures over time by:
Post-Restoration Monitoring:
Install gauging stations to continuously monitor streamflow and collect rainfall data.
Use remote sensing and field surveys to track changes in land cover, soil moisture, and other watershed characteristics.
Comparative Analysis:
Compare pre- and post-restoration hydrographs to evaluate changes in peak flows, lag times, baseflow, and flow duration curves.
Assess the effectiveness of specific interventions like reforestation, wetland construction, or stormwater management practices.
iii. Adaptive Management:
Adaptive management uses ongoing monitoring and feedback to adjust restoration strategies based on observed hydrological responses. This involves:
Feedback Loop:
Integrate hydrograph data into the restoration planning process.
Regularly review and analyze hydrograph data to identify trends and deviations from expected outcomes.
Decision-Making:
Use hydrograph analysis to guide decisions on modifying or expanding restoration measures.
Prioritize actions based on their effectiveness in achieving hydrological and ecological goals.
Long-Term Sustainability:
Ensure continuous monitoring of hydrological conditions and adjust management practices as needed.
Engage stakeholders and communities in the adaptive management process to build support and ensure long-term success.
Section VII. Appendices
i. Additional Technical Information:
Detailed Calculation Examples:
Provide step-by-step examples of hydrograph calculations, including peak discharge, runoff volume, and unit hydrograph applications.
Include numerical examples and visual aids to illustrate the calculations.
Statistical Methods:
Discuss statistical methods for analyzing hydrograph data, such as regression analysis, time series analysis, and frequency analysis.
Include examples of how these methods can be applied to hydrograph analysis.
Relevant Literature:
Reference key publications and research studies on hydrograph analysis and ecosystem restoration.
Provide a bibliography for further reading and research.
ii. Glossary of Key Hydrological Terms:
Baseflow: The sustained flow of water in a stream or river, primarily fed by groundwater.
Hydrograph: A graphical representation of the flow of water over time at a specific location.
Infiltration: The process by which water enters the soil.
Lag Time: The interval between the centroid of rainfall excess and the centroid of the hydrograph.
Peak Discharge: The maximum flow rate observed in a hydrograph during a specific precipitation event.
Runoff: Water that flows over the surface of the land, typically as a result of precipitation.
Unit Hydrograph: A hydrograph representing the direct runoff resulting from one unit of rainfall excess uniformly distributed over the watershed for a specified duration.
Conclusion and Transition to Next Discussion
The detailed exploration of hydrograph analysis and its applications in ecosystem regeneration underscores the critical role of hydrological processes in maintaining watershed health and mitigating flood risks. By understanding and managing these processes through effective restoration strategies, we can enhance the resilience of our ecosystems and protect vulnerable communities from the impacts of extreme weather events.
Reflective Questions:
Imagine if Pakistan had natural ecosystems of forests and riparian buffers: How much could the flood damage have been reduced during the catastrophic 2022 floods?
What if degraded lands in Pakistan were systematically regenerated: How significant would the impact be on mitigating future flood events and enhancing overall ecological health?
Could climate anomalies be harnessed as vectors for regeneration: What if these extreme weather events, through careful application of natural regeneration methodologies, could transform destructive floodwaters into life-giving resources?
Upcoming Focus:
In our next discussion, we will delve into the specific numbers associated with the Pakistan floods of 2022. We will analyze the flood hydrographs, examine the extent of the damage, and propose a data-driven plan for land regeneration. By quantifying the amount of degraded land that needs to be restored, we aim to develop a strategic framework for using natural ecosystems as a buffer against future floods and climatic anomalies.
This approach will not only mitigate the immediate impacts of such events but also contribute to long-term ecological sustainability and resilience. Stay tuned as we explore the potential of natural ecosystems to provide climate insurance and safeguard communities against the devastating effects of floods.
